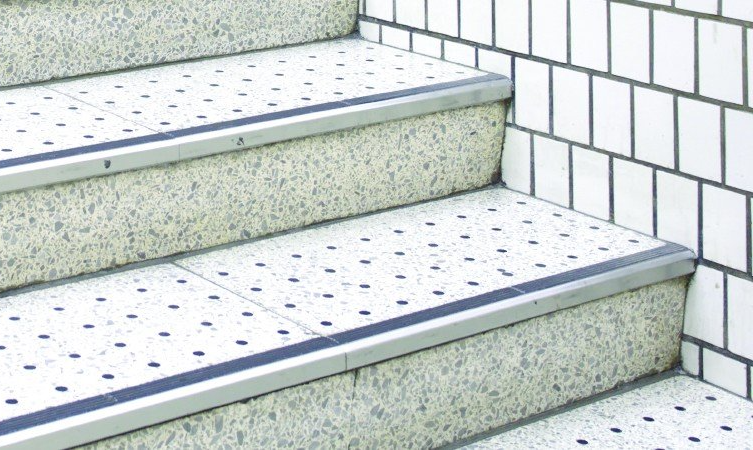

The NHD Profile is designed to be used in most commercial and industrial applications. It is available in a 5mm gauge allowing for fixing with  carpet or similar floor covering. The profile is available in a range of designs with DDA and building regulations accounted for.

Designed to meet the guidelines in BS8300:2009+A1:2010.

External grade Tredsafe® Insert.

Tredsafe insert is manufactured from a special blend of P.V.C., silica quartz and polymeric plasticiser giving an homogeneous hard wearing anti-slip flooring for wet and dry conditions.  The three dimensional pyramid pattern which provides excellent slip resistance in both wet and dry conditions.

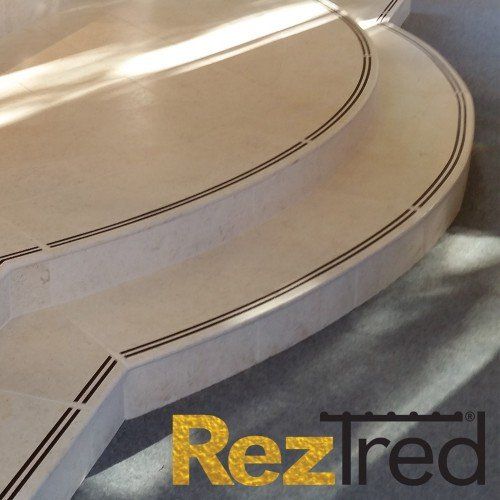

Tube of RezTred Resin to accompany the Anti Slip Tread Kits.

RezTred Resin can be applied onto virtually any surface including natural stones, terrazzo, ceramics, porcelains, glazed tiles, metal treads, wood and glass.

Suitable for external use offering R12 resistance and meets the requirements of DIN67510 Part 4.

Application temperature +15ºC.

Drying times approx.

100 - 120 mins @ 20ºC

45 - 50 mins @ 30ºC

20 - 25 mins @ 40ºC

Theoretical coverage

Width    Thickness            Coverage

10mm   1mm                      38m

20mm   1mm                      19m

50mm   1mm                      7.6m

Applicator Gun

Applicator Gun to be combined with the RezTred Tube of Resin in order to apply resin into the RezTred stencil.

Two Gripper Plates

Aluminium Handle and Metal Trigger

Patented adjustable screw to cut thrust gaps

High-performance Drive (Easy on the hand)

Suitbale for high Viscosity Sealant

Stencils

Additional RezTred Stencils:

10mm Strip Stencil - 1.2m

25mm Strip Stencil - 1.2m

25mm Disc Stencil - 1.2m

Replacement Nozzle

A replacement nozzle for the tube of resin and applicator gun from the RezTred Anti Slip Tread Kit. If the resin is left in the nozzle un-used for 15 minutes or longer, the resin will set and a replacement nozzle will be needed.

Cleaning solution

The 3M™ VHB™ Surface Cleaner consists of a mixture of isopropyl alcohol and distilled water in the ratio of 90 :10.

The 3M™ VHB™ surface cleaner can be applied on different smooth materials like metals, plastics or painted surfaces; however, compatibility should be checked  beforehand.

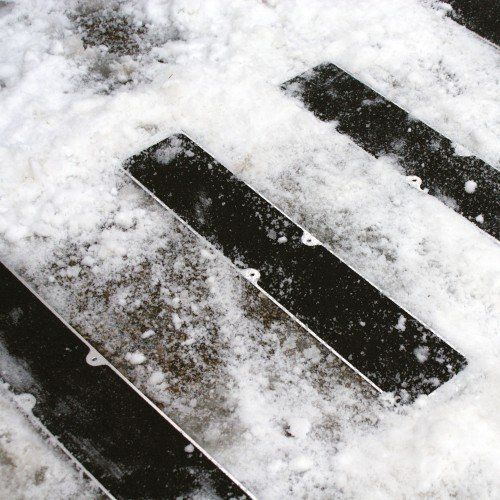

Screw down anti slip plates are ideal for applications exposed to harsh environments with countersink eyelets for easy applications (6mm screws recommended).

Manufactured from resilient Stainless Steel with an anti slip coating covering most of the top surface and finished with rounded corners for a more aesthetic appearance.

Thickness of plates: 1.6mm

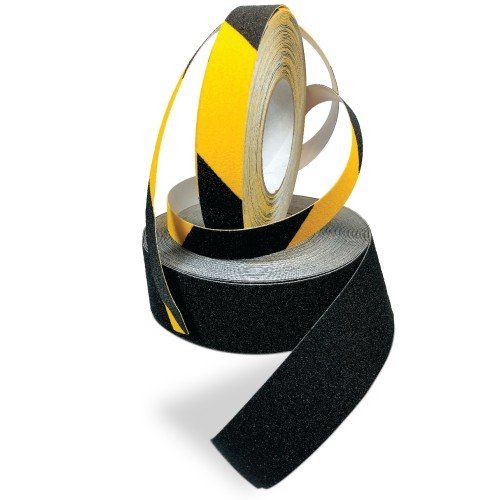

A versatile anti slip tape made from a fine grade aluminium oxide, which makes it suitable for use in a wide range of applications.

The 60 grit is a medium anti slip abrasive coating, perfect for general anti slip requirements possessing excellent levels of grip.

Comes in 18.3m rolls
